  • YEAR : 2019
  • LOCATION : Uttarakhand, India
  • CATEGORY : Hospitality

Himalayan Mountain Cabin

The MiCabin is a compact combination of tools for survival. The mountain cabin offers the basic comforts of a home. It provides an original, yet rustic experience of the mountain life. In a compact 45m2, it packs in a bedroom, bathroom, pantry, lounge and loft for extra guests.

This cabin is a device to observe the dramatic, rugged, mountainscape of the Himalayas. Perched on a Mica rock formation, the Y-shaped floor plan focusses on three distinctive horizons. The living space stares at the deep valley below. While the bathroom opens towards the immediate forest, the bedroom orients towards the Himalayan mountain range. A small pantry occupies the central triangular space. The outdent on the end of each wing contains a fireplace inside a cabinet. All these cabinets and storage spaces are built in to make optimum use of the space. They emphasise on the framing of views.

In order to reduce the interference on the rock surfaces, the shape of the facetted elevations are determined by the points at which the volume hits the geography. The almost “crystal-like” volume resonates with the surrounding rocky outcrops.



Autarkic Cabin

The mountain cabin is designed to be autarkic. Integrated solar panels fill all three roofs to provide power to the cabin. They are sloping inwards to the centre to harvest all the rainwater. This water then flows in a water tank hidden in the “hull” of the Cabin between the floor and its foundation. While avoiding reliance on external sources, it prevents any damaging impact on the sensitive ecological habitat it is nestled in.

Project Data

Project Name

The MiCabin

Year

2018

Themes

Sustainability, Context, Typology

Status

Studies

Size

45 sq.m.

Program

Mountain Cabin

Mountain Cabin - Himalayas View

A breathtaking view of the Himalayan chains, on the north side of the site

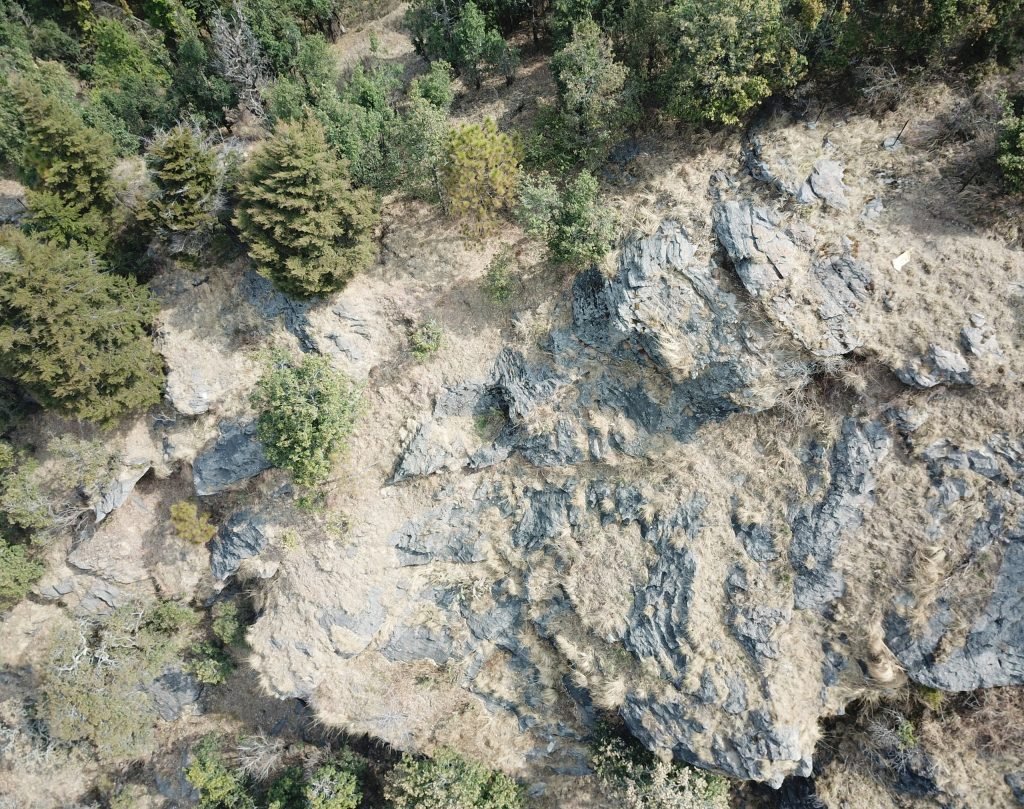

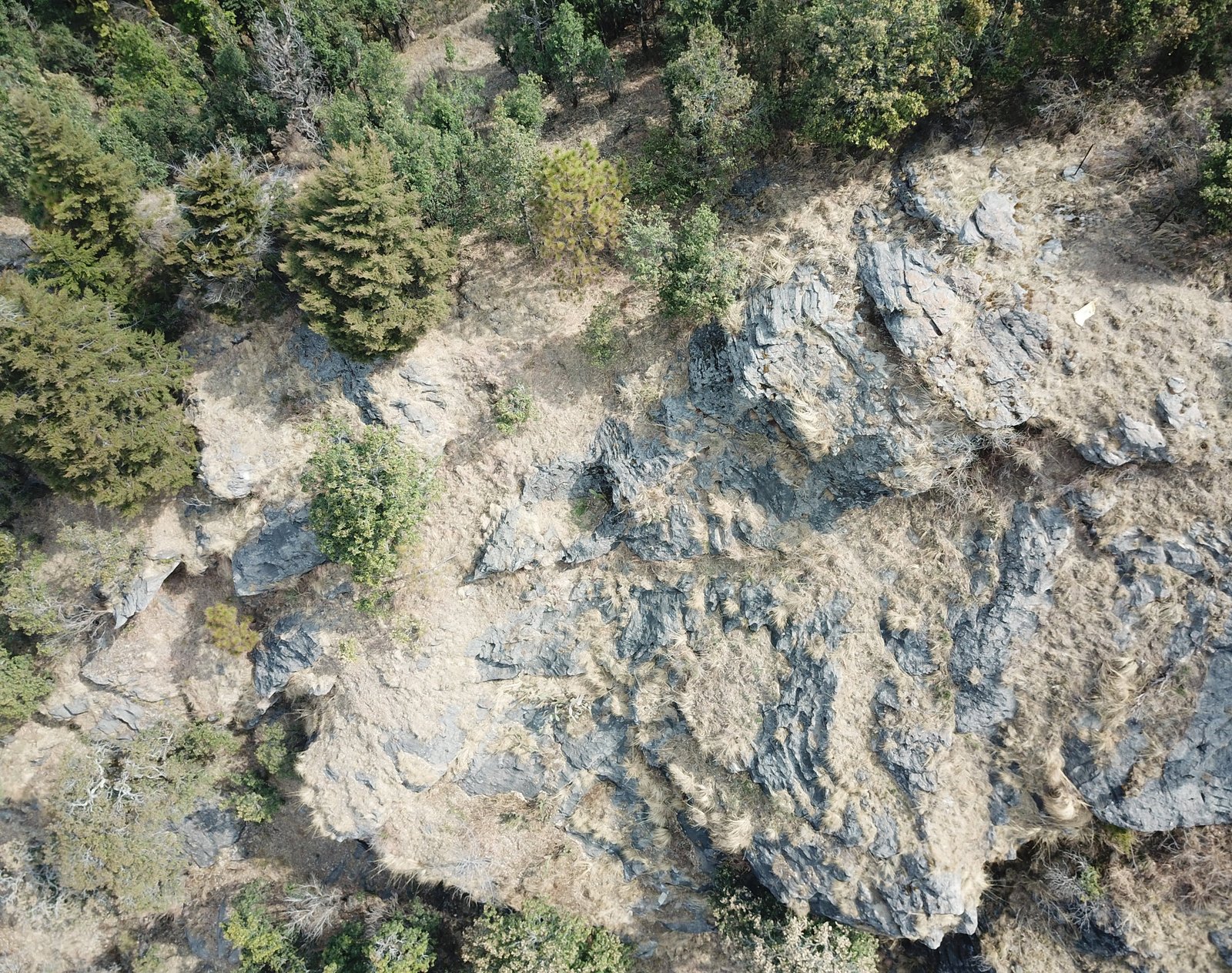

Mukteshwar-Uttarakhand-India_Aerial Photograph

A daring site  on the verge of a steep drop

dramatic-stones

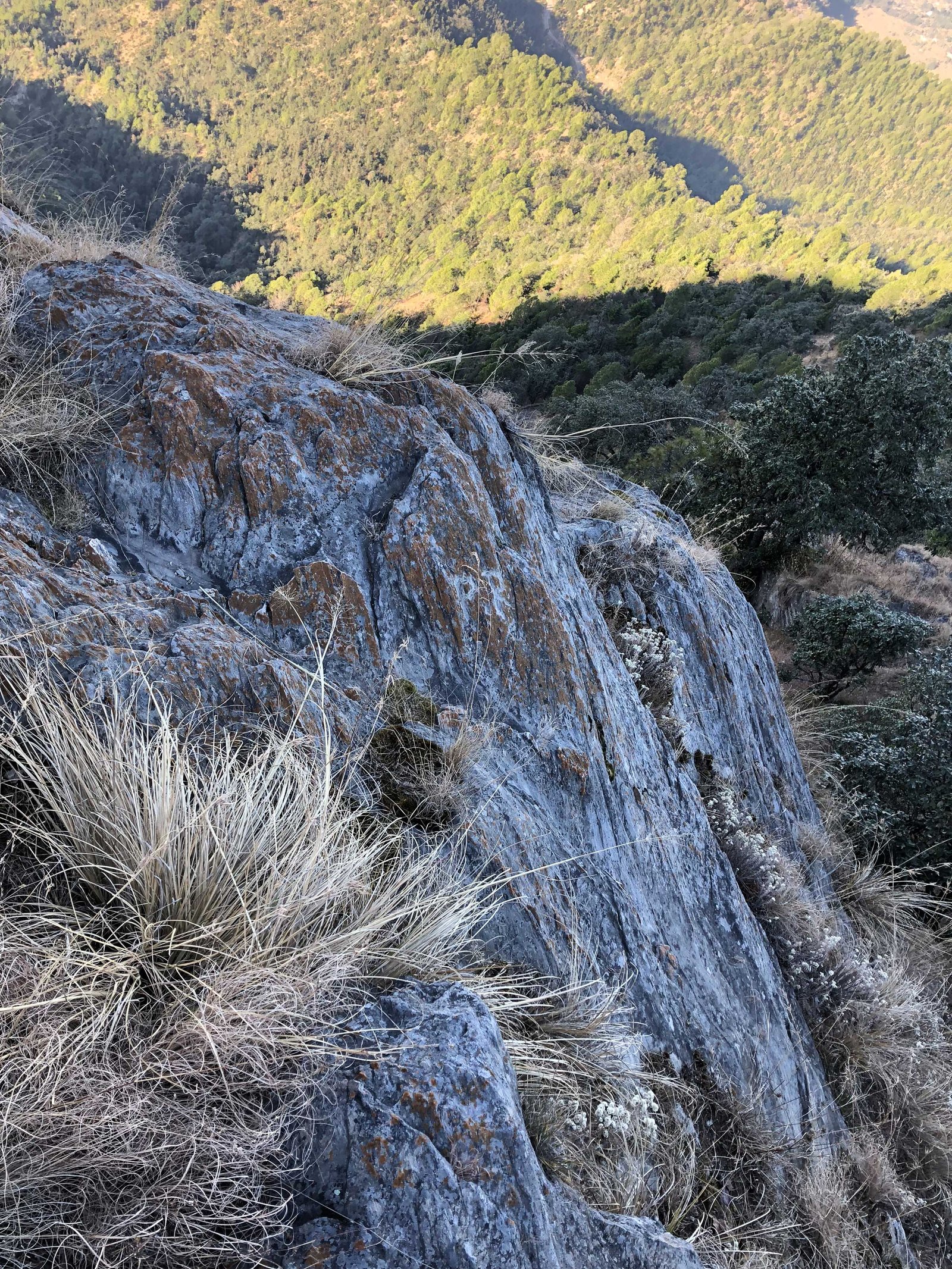

Himalayas, Rock Cliff

The proposed site is a spectacular observatory spot of the valley and the Himalayan chains

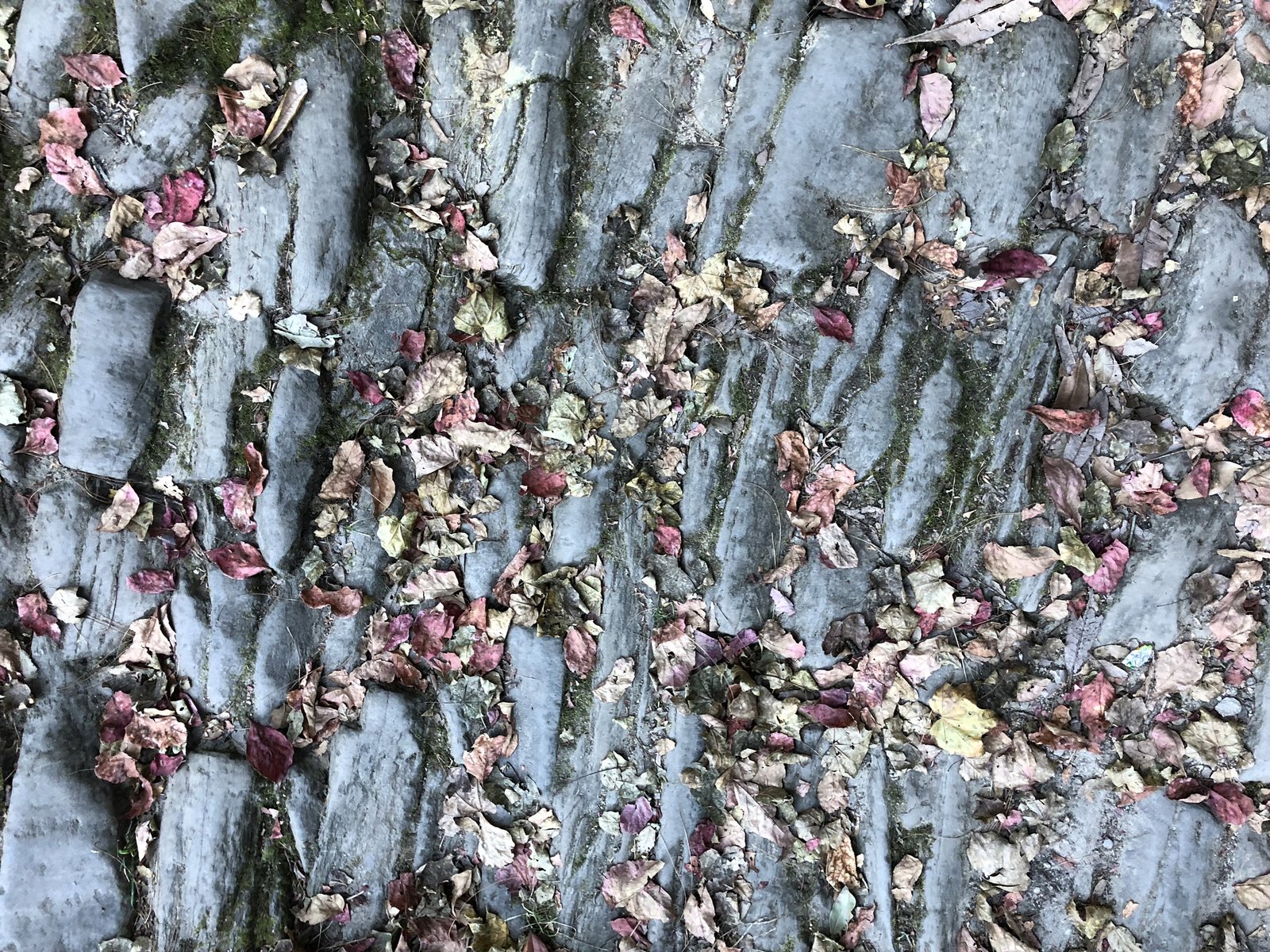

Mountain Cabin - Himalayas, Stone Pathway

The rock strata on site, slowly merging with the local flora

Mountain Cabin - Himalayas, Site Model
Mountain Cabin - Himalayas, site model
Mountain Cabin - Himalayas, site model side view

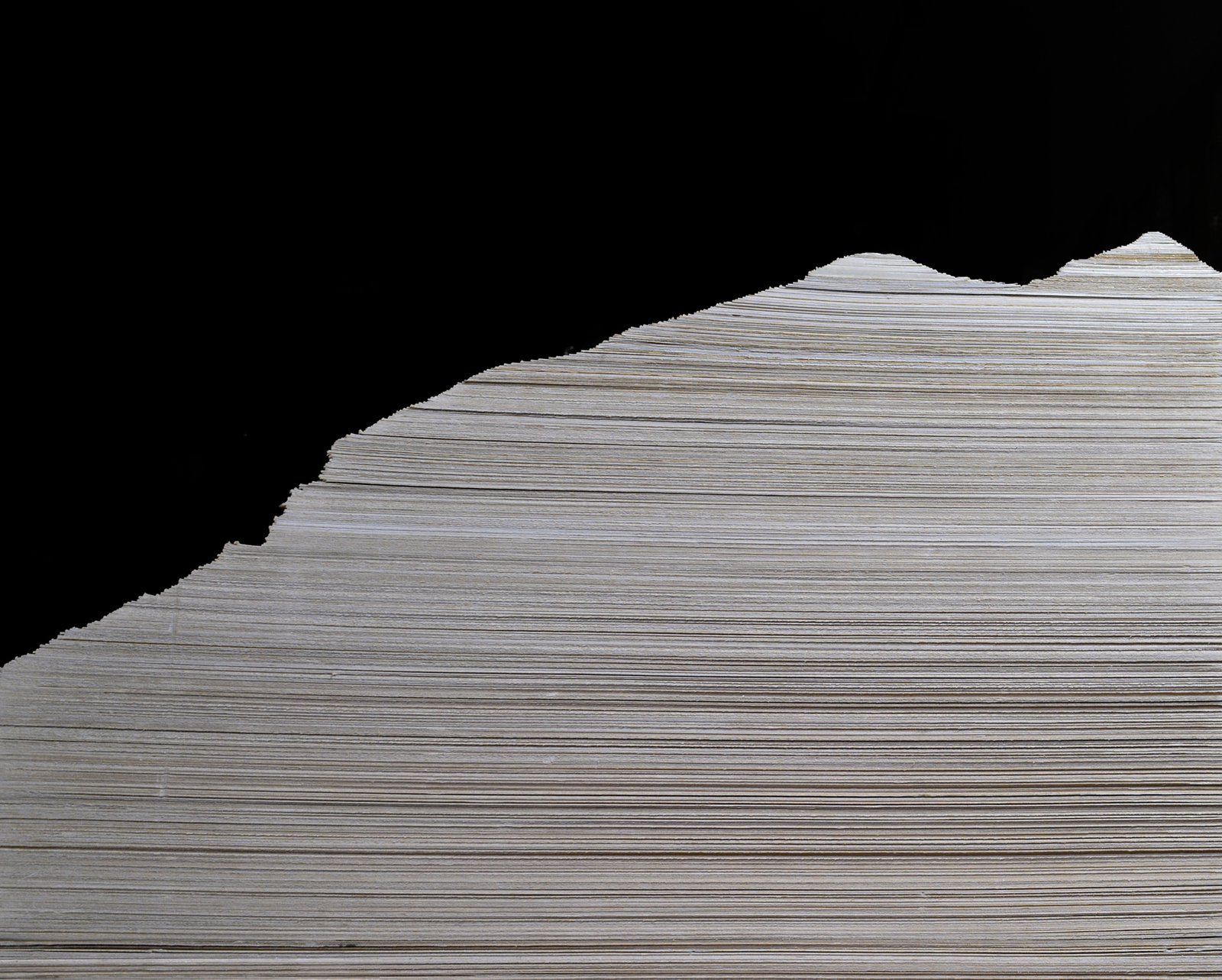

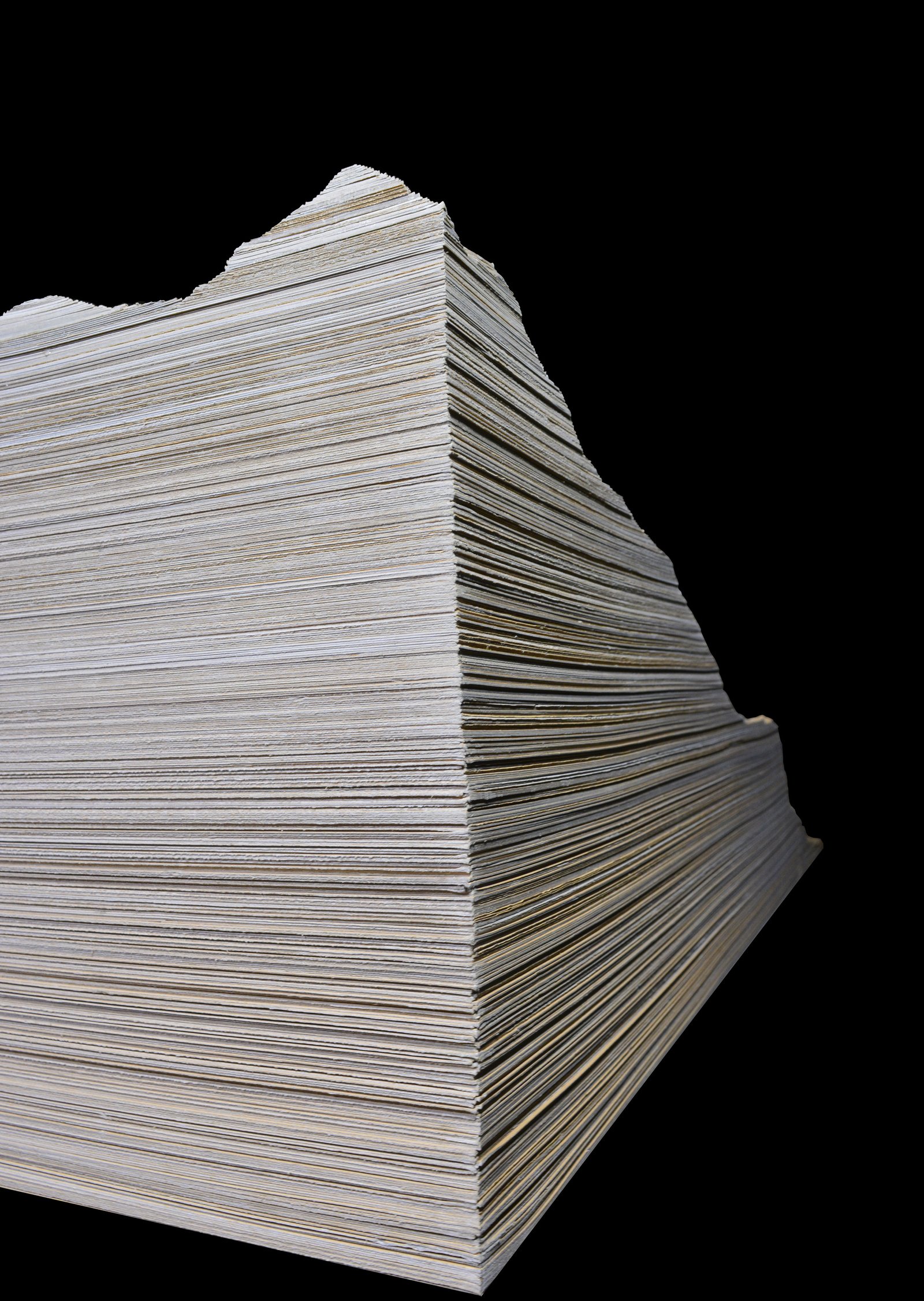

mountain cabin ground topography

Site model

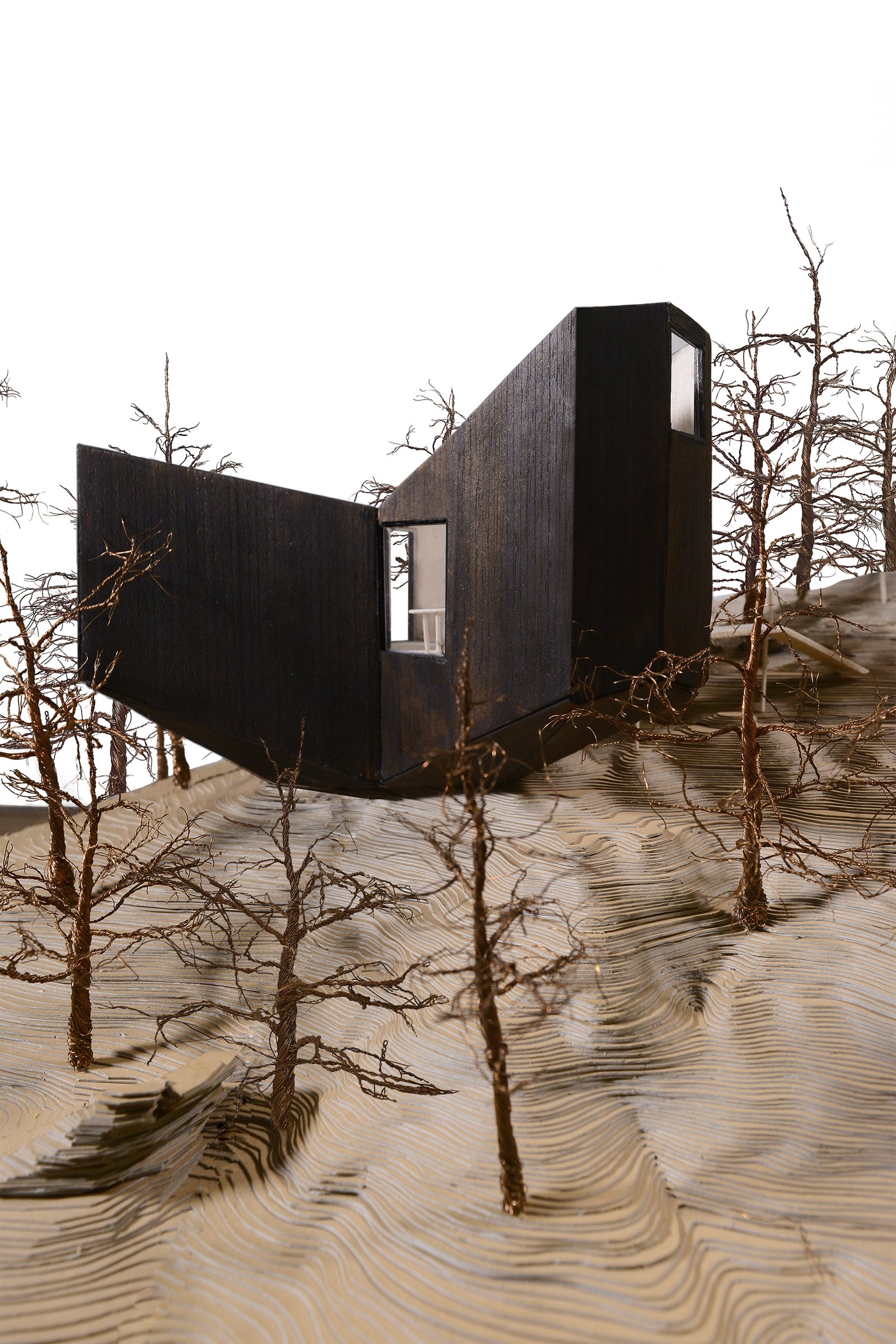

Himalayan mountain cabin
Himalayan mountain cabin
Himalayan mountain cabin

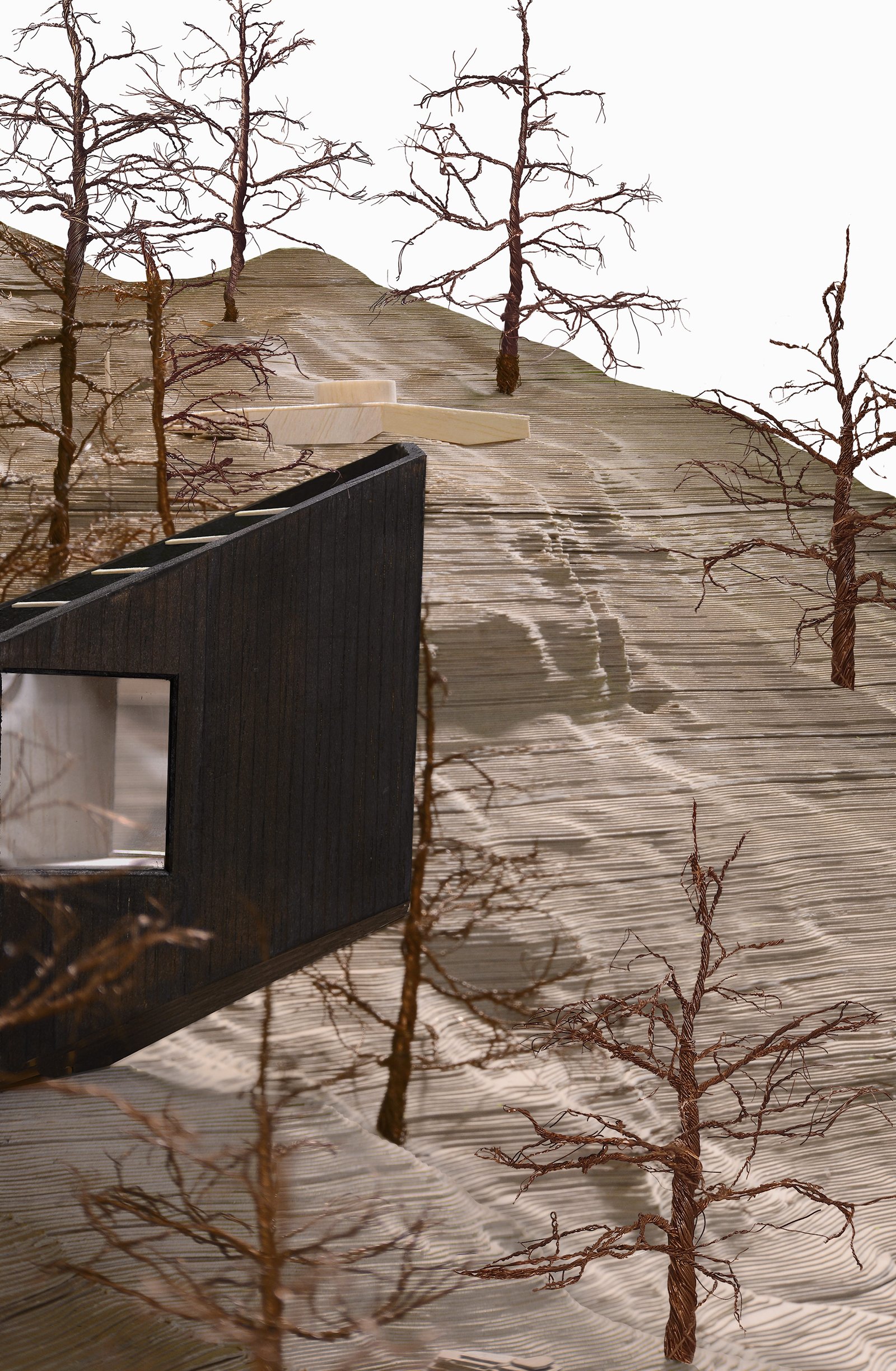

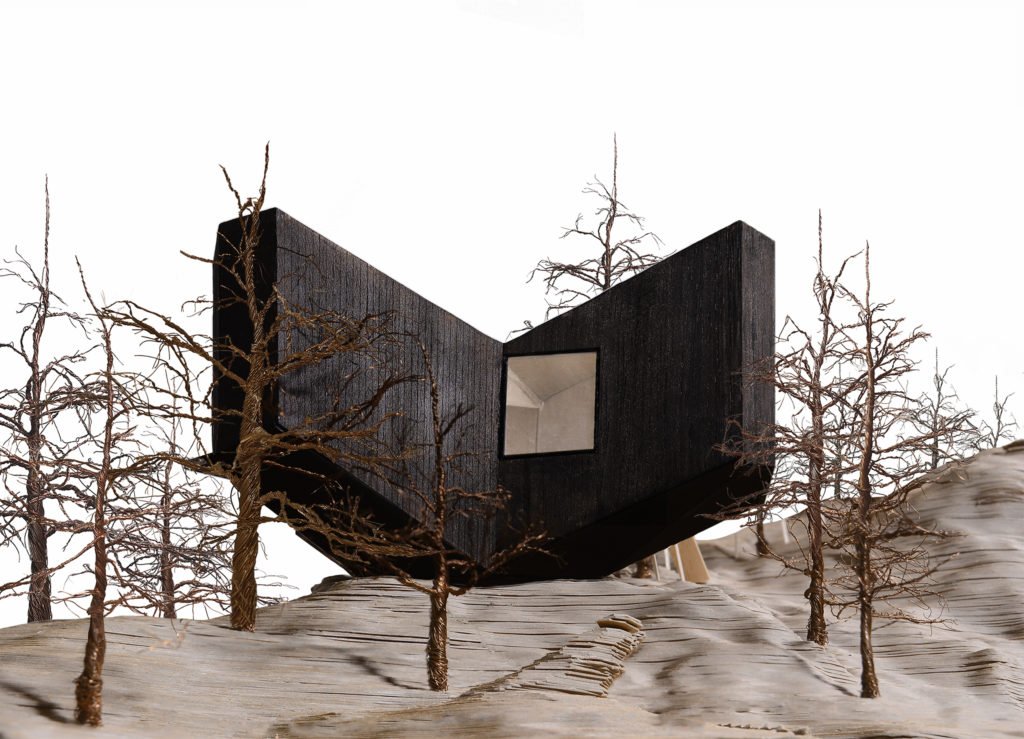

Model

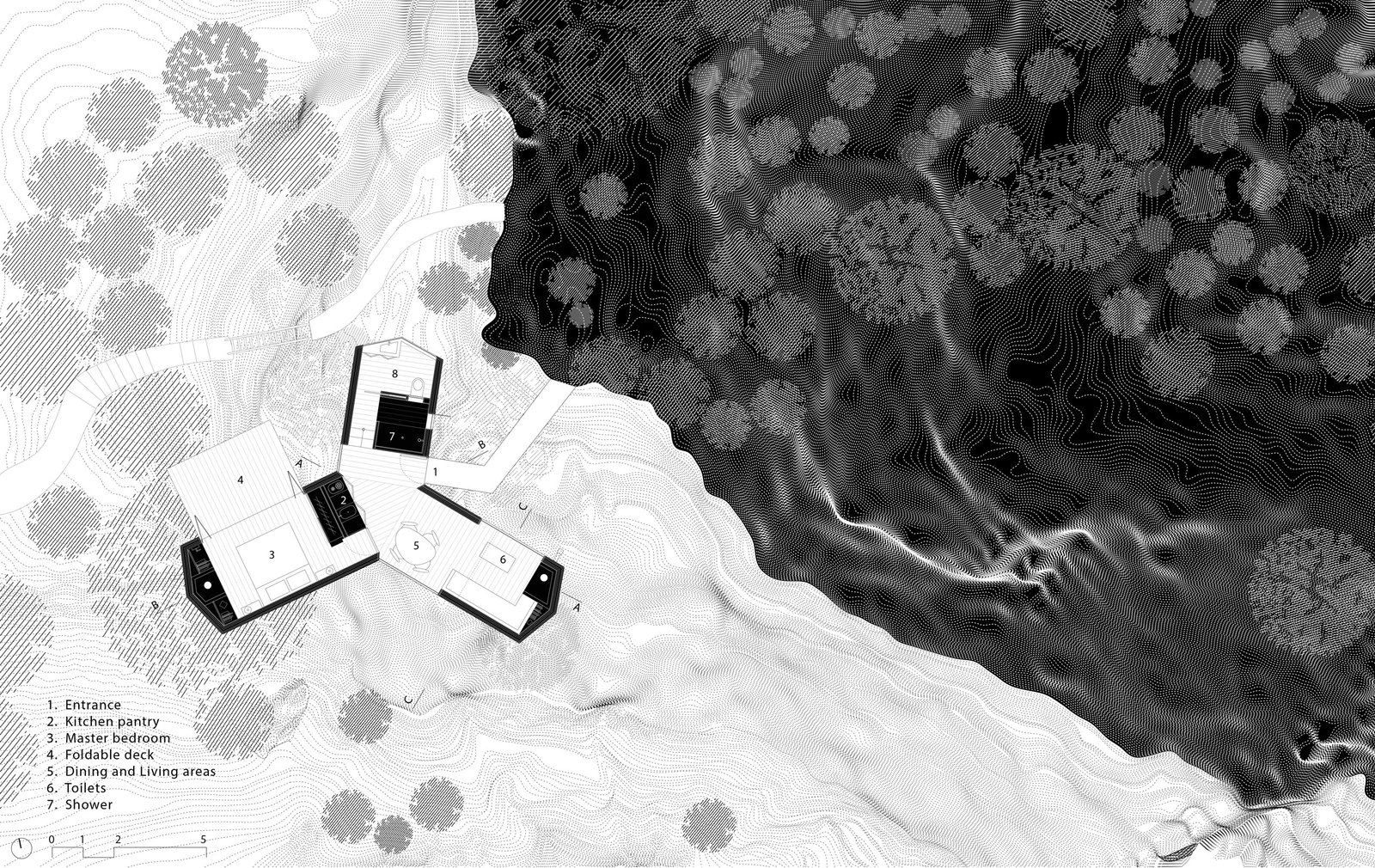

Floor Plan - Himalayan Mountain Cabin

Ground floor plan

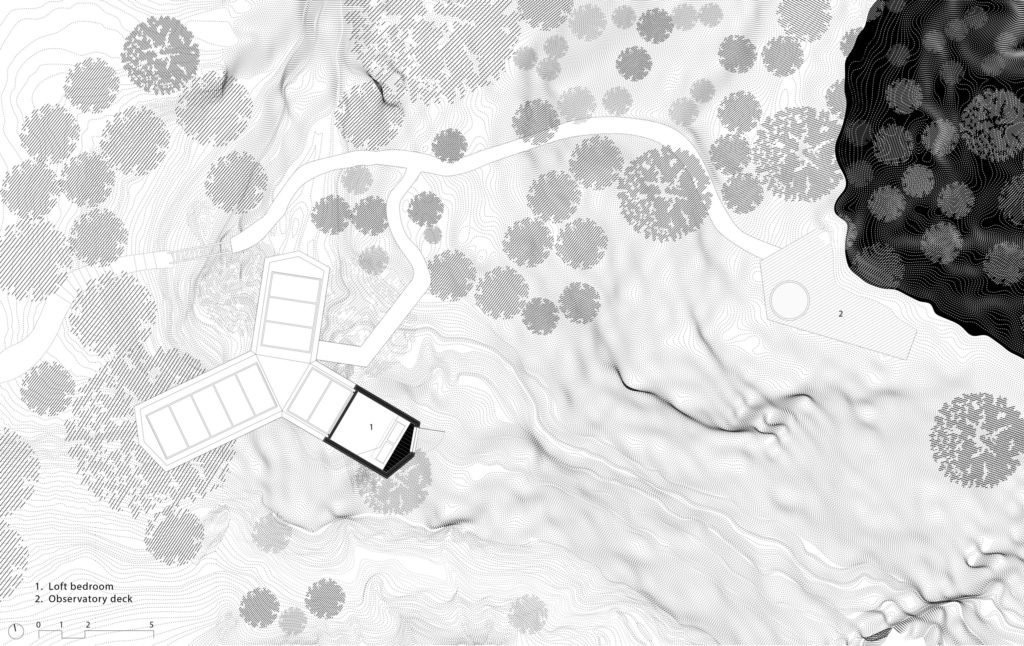

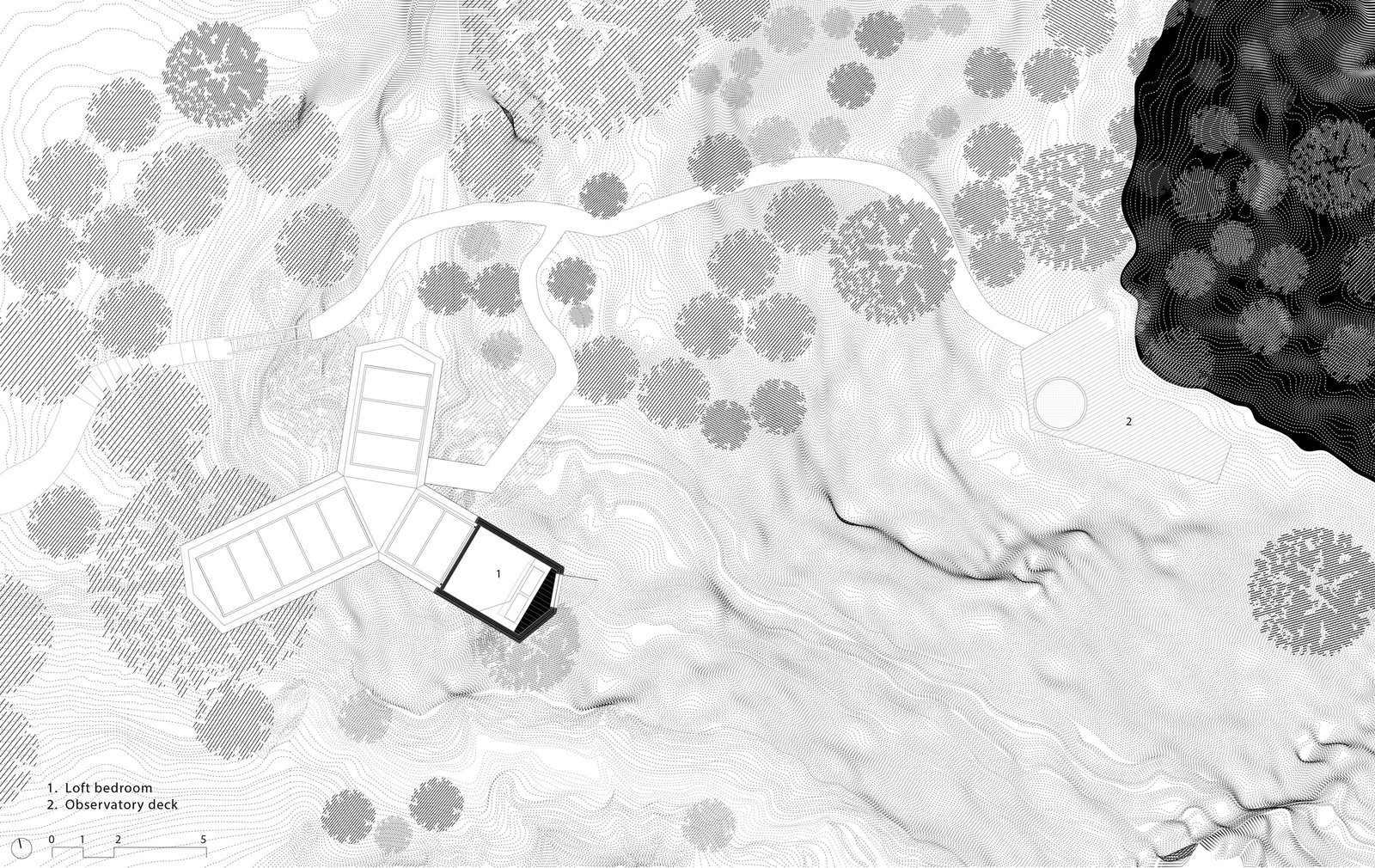

Loft Plan - Himalayan Mountain Cabin

Loft plan

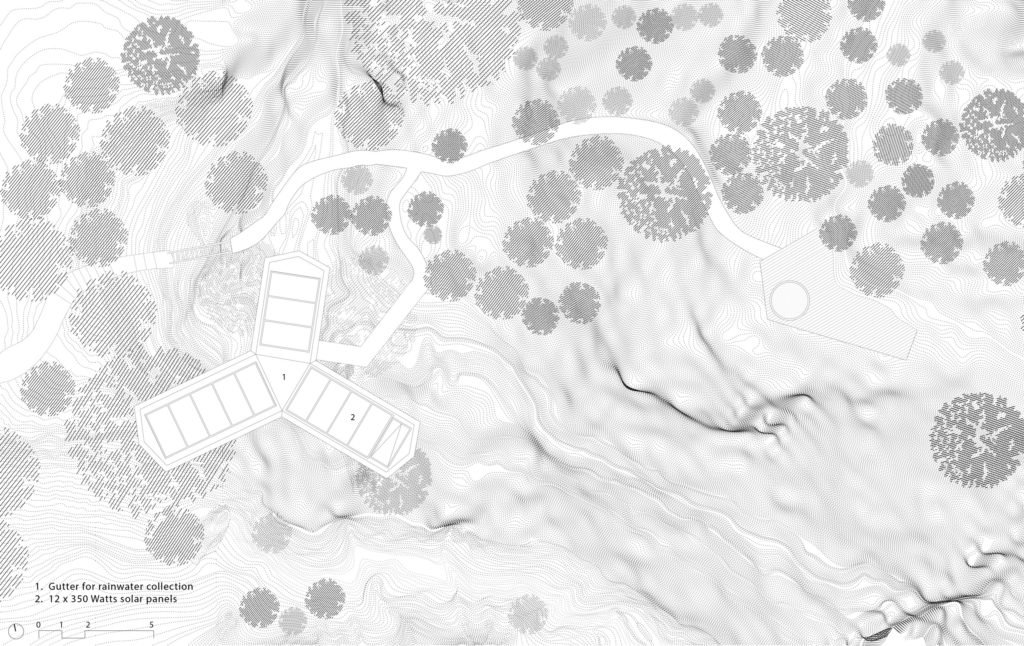

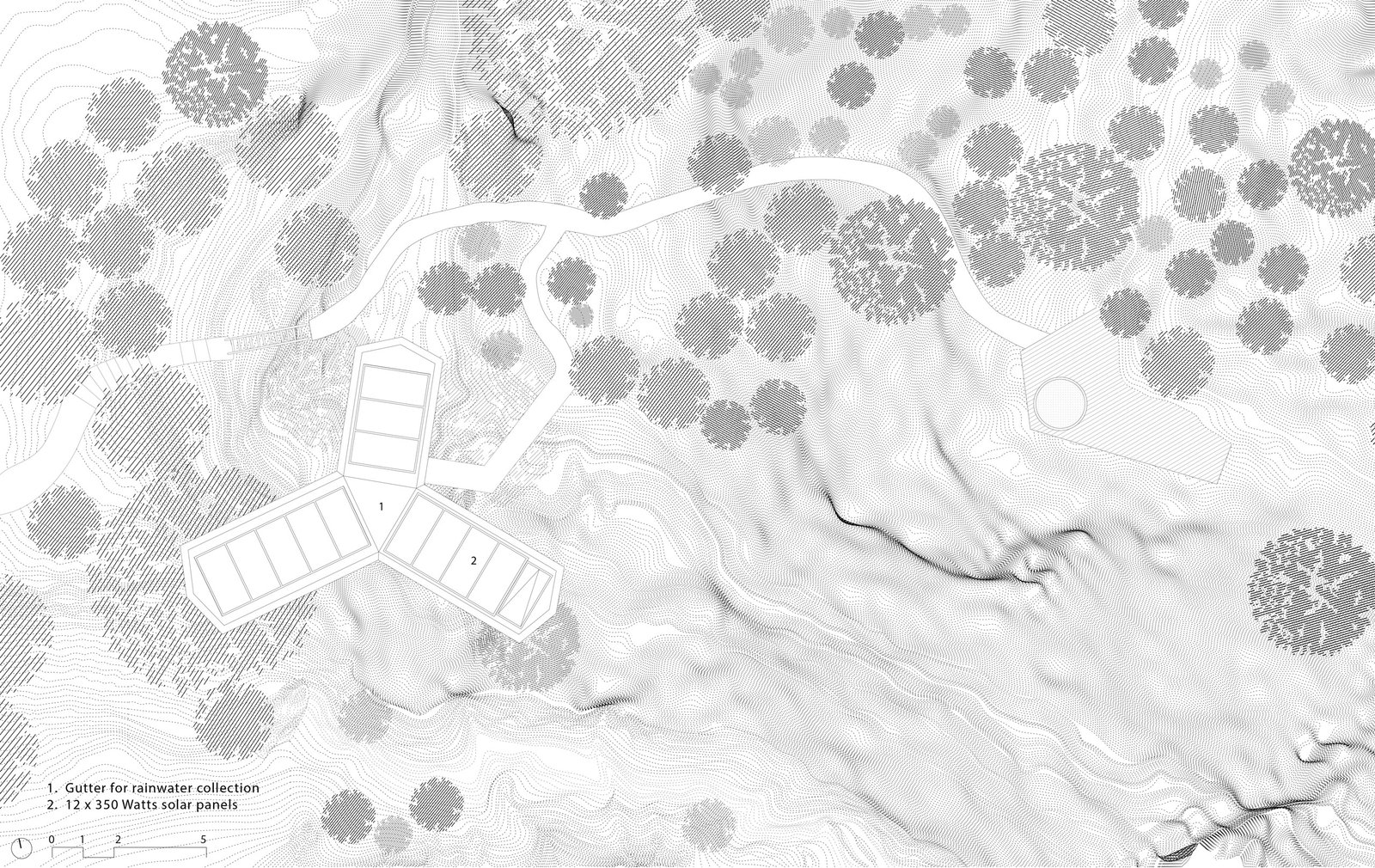

Roof plan - Himalayan Mountain Cabin

Roof  plan

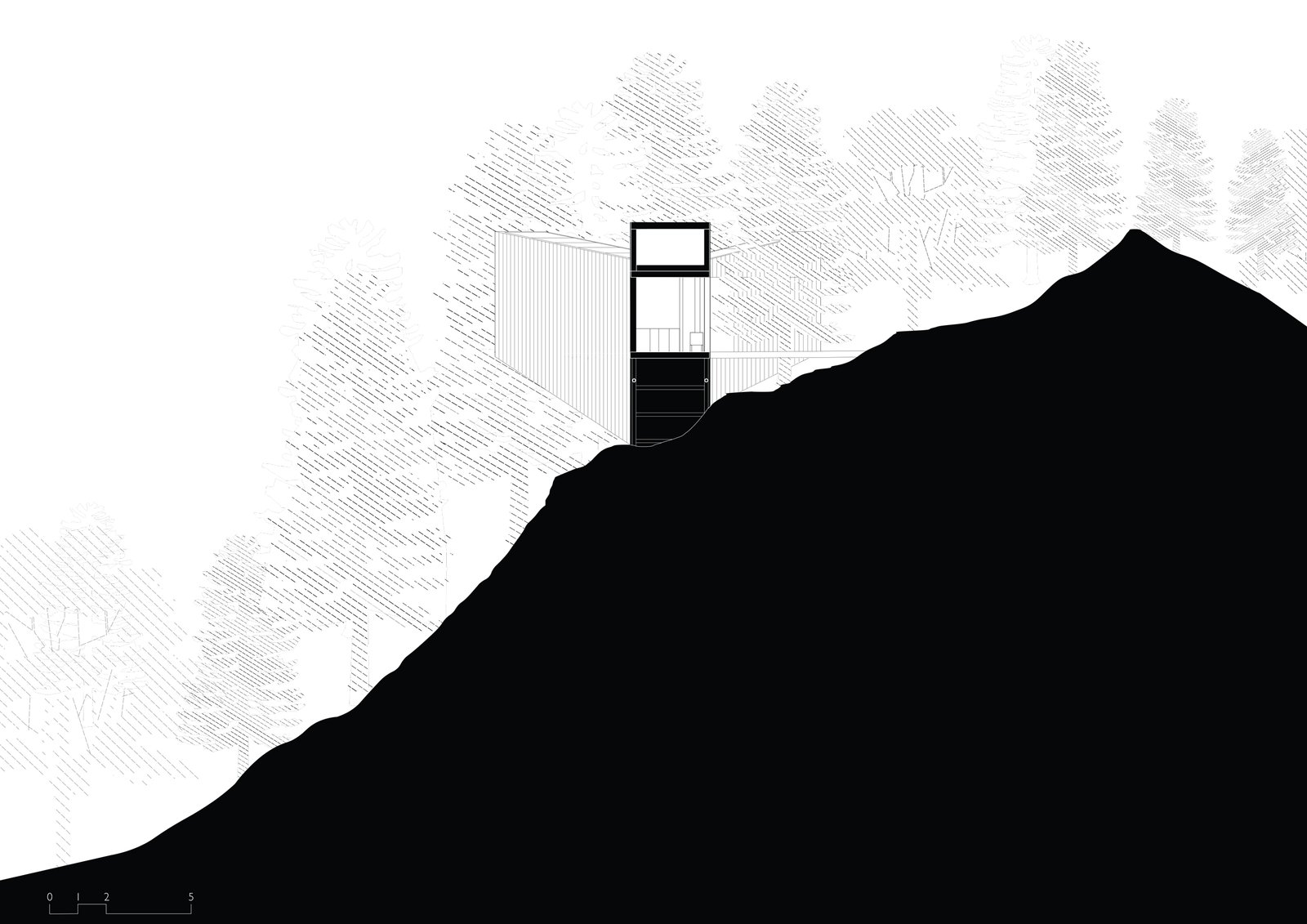

Section drawing - Himalayan Mountain Cabin

Section AA

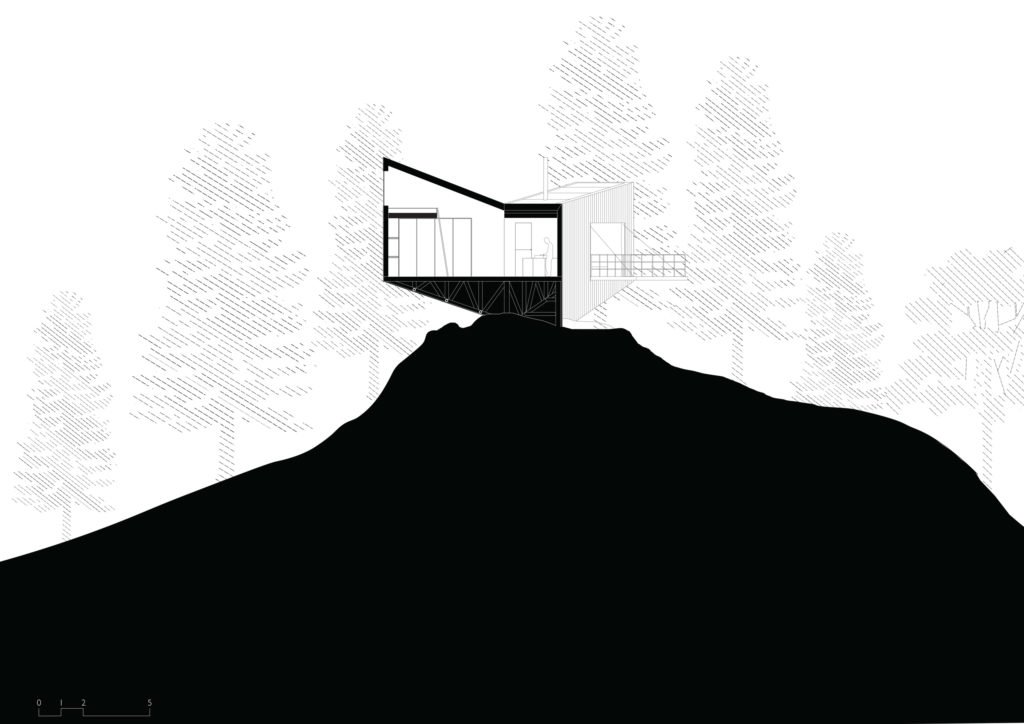

Section drawing - Himalayan Mountain Cabin

Section BB

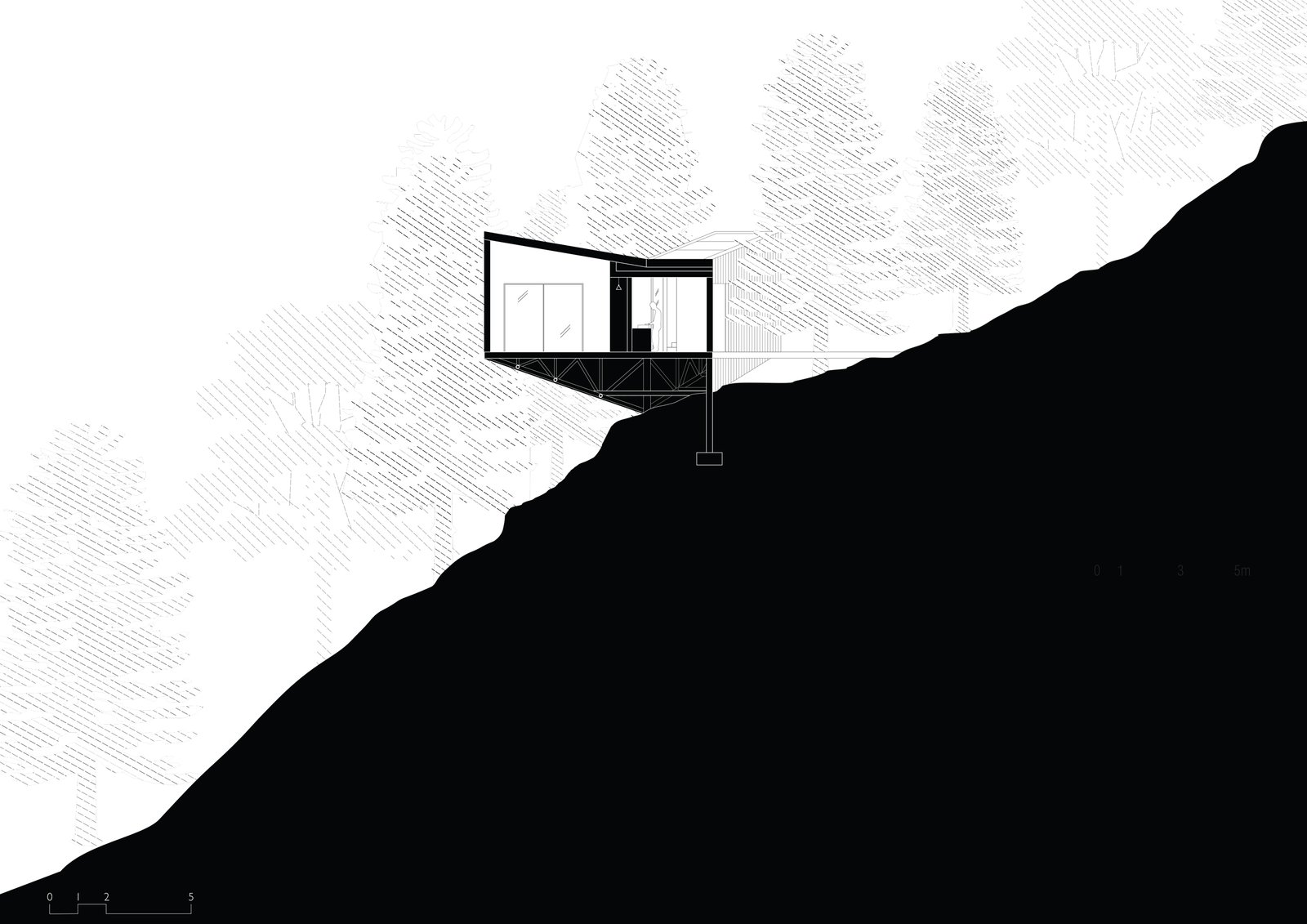

Section drawing - Himalayan Mountain Cabin

Section CC

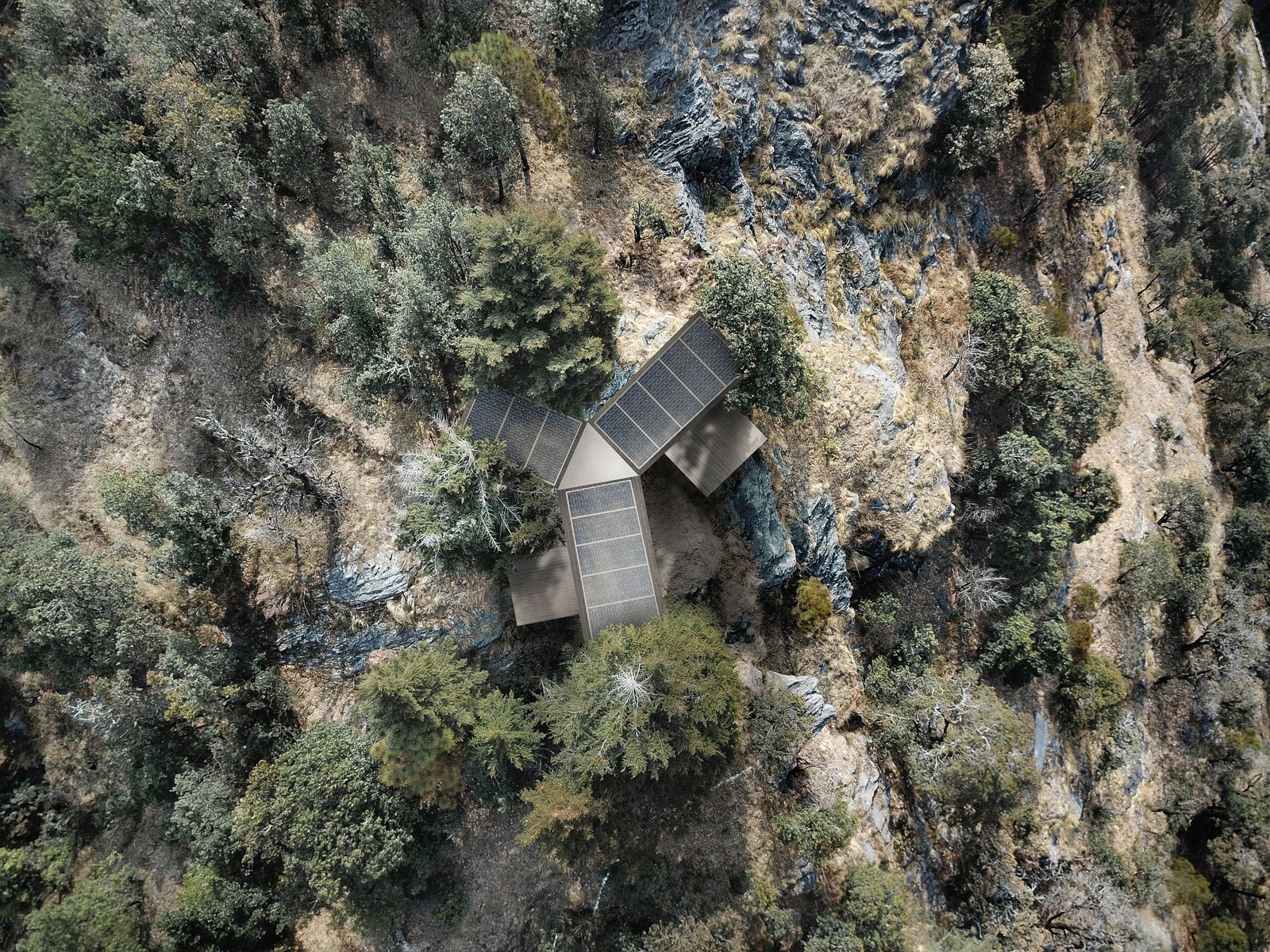

Roofscape Himalayan cabin

Top view
